JEDEC Matrix Trays

From £4.00

Black antistatic modified polysulfone
Standard JEDEC dimensions 323mm x 136mm
Temperature resistance up to 150°C

Note: More JEDEC matrix tray configurations available on request.

Cell Type	BGA LQFP PBGA QFN QFP TBGA TQFP TSOP TSOP I
Cell Size	Clear

Cell Type

BGA

LQFP

PBGA

QFN

QFP

TBGA

TQFP

TSOP

TSOP I

Cell Size

Clear

0 People watching this product now!

Description

JEDEC Matrix Trays

ESD safe component trays for storage and transport

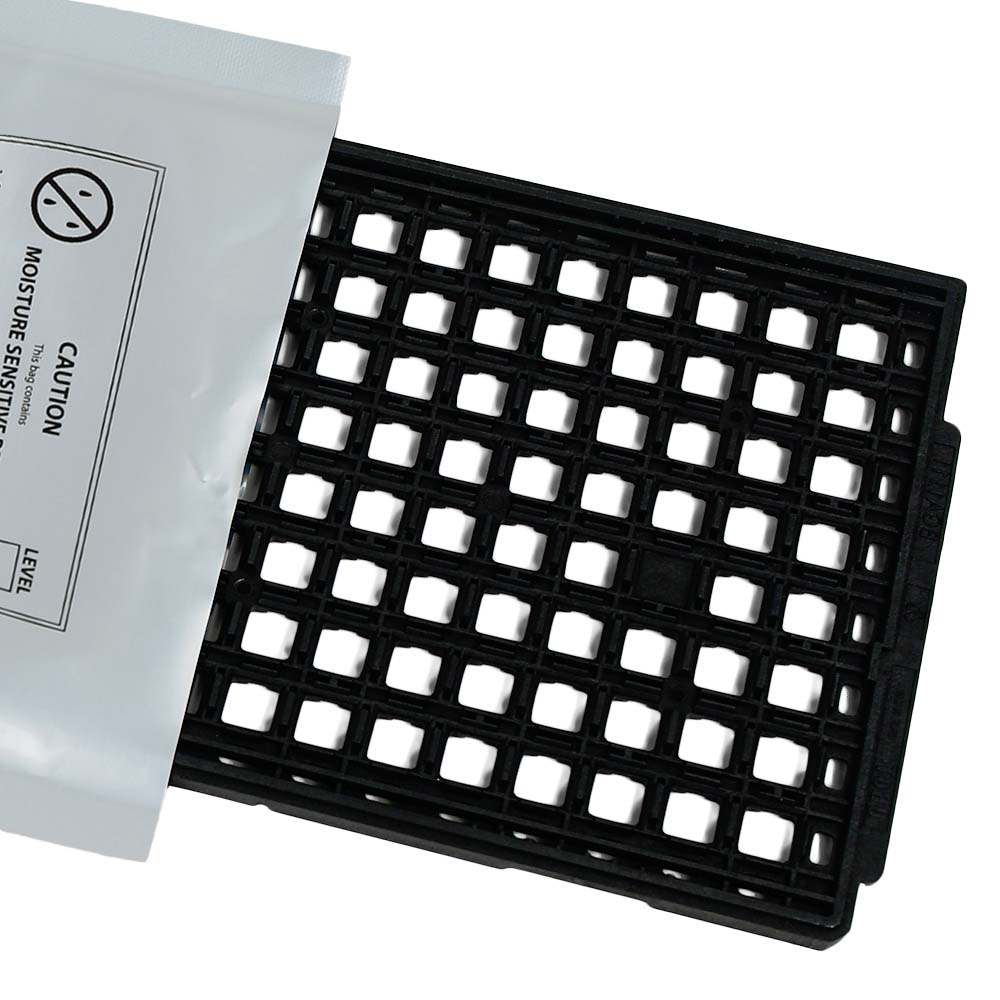

JEDEC matrix trays are manufactured to meet global JEDEC standards for semiconductor and component packaging. Constructed from heat-resistant, antistatic modified polysulfone, these trays are designed for use in automated pick and place systems, assembly, testing, and secure storage.

All trays share uniform JEDEC “X” and “Y” dimensions of 323mm x 136mm, allowing easy stacking and efficient use of space. The trays withstand high temperatures up to 150°C, with selected models rated up to 180°C, providing long-term stability and reliability for sensitive electronic components. Sold individually.

Complete your packaging solution with JEDEC tray covers, conductive straps, moisture barrier bags, humidity indicator cards, and silica gel desiccants.

Antistat is a global supplier, looking to order in the US?

Specification

Application	EPA Use
Resistivity	Dissipative
Sterility	Non-Sterile
Brand	Antistat
Material	Polysulfone (PSU)
Cell Type	BGA, LQFP, PBGA, QFN, QFP, TBGA, TQFP, TSOP, TSOP I
Colour	Black
Cell Size	3mm x 3mm x 1.0mm, 4mm x 4mm, 5mm x 5mm x 1.0mm, 7mm x 7mm, 7mm x 7mm x 1.0mm, 7mm x 7mm x 1.4mm, 8mm x 20mm, 8mm x 8mm x 1.0mm, 8mm x 8mm x 1.5mm, 8mm x 13mm, 9mm x 9mm x 1.5mm, 10mm x 10mm, 10mm x 10mm x 1.0mm, 10mm x 10mm x 1.4mm, 11mm x 11mm x 1.5mm, 12mm x 12mm x 1.4mm, 12mm x 12mm x 1.0mm, 12mm x 12mm, 12mm x 20mm x 1.0mm, 13mm x 13mm, 14mm x 14mm x 1.4mm, 14mm x 20mm x 1.4mm, 15mm x 15mm x 1.36mm, 16mm x 16mm x 1.0mm, 20mm x 20mm x 1.4mm, 21mm x 21mm, 24mm x 24mm x 1.4mm, 28mm x 28mm x 1.4mm
Tray Size	320mm x 135mm (12.6in x 5.3in)
Sales Unit	Each
